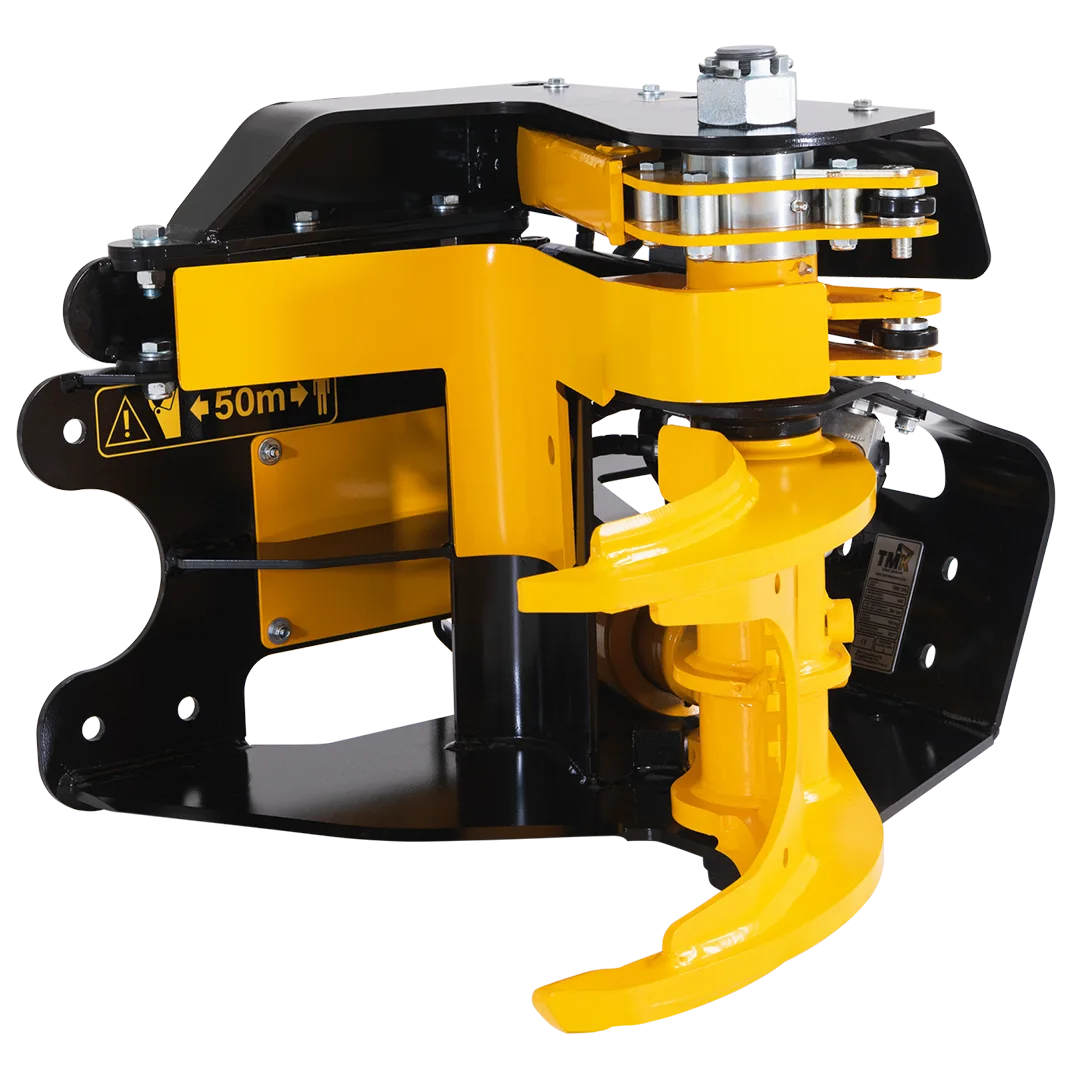

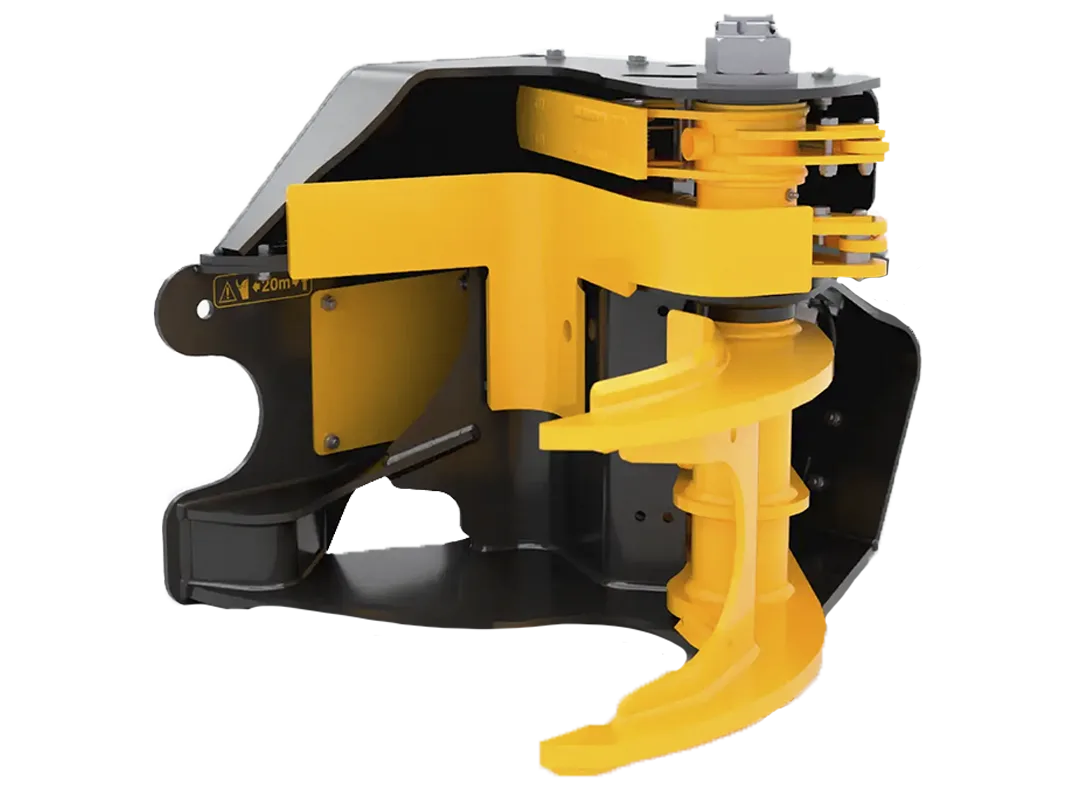

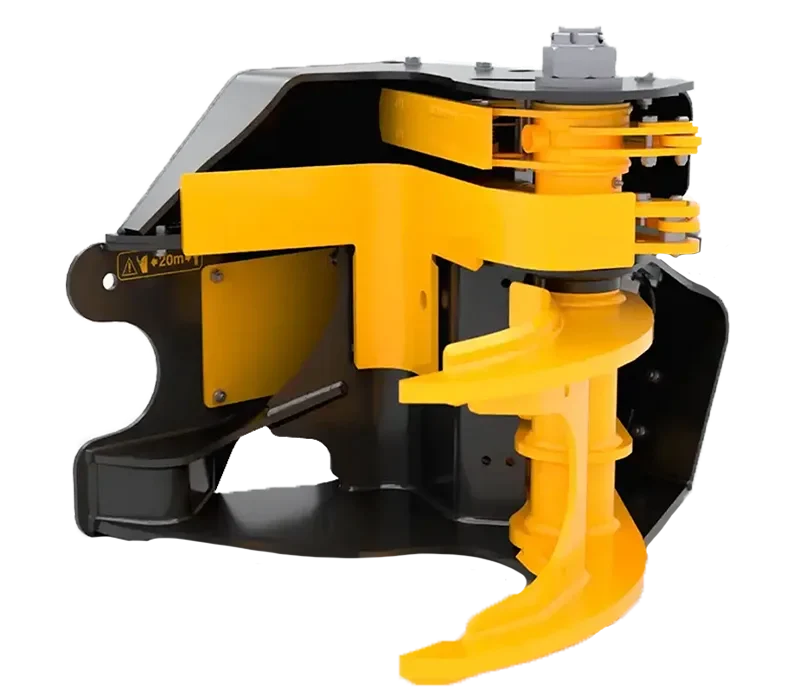

TMK 200 Tree Shear
MACHINE SIZE
2.5 - 8 Ton
MAXIMUM DIAMETER CUT
200 mm
WEIGHT
185 KG

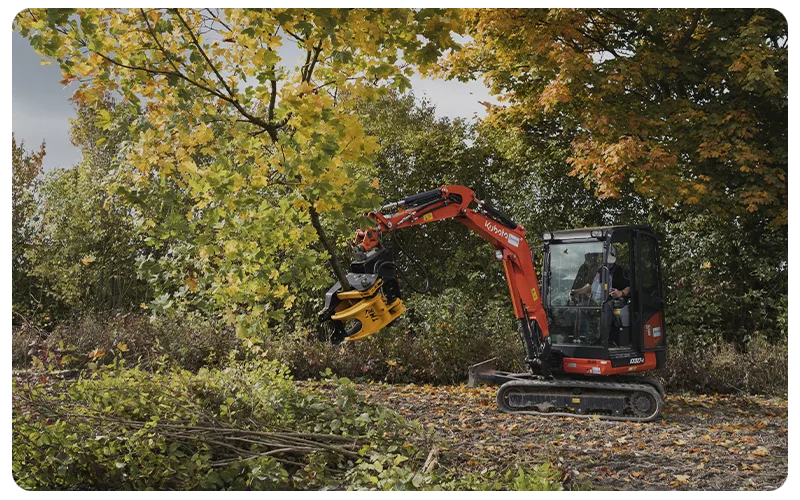

The compact size and expert design make the TMK 200 the optimal tree shear for smaller excavators ranging from 2.5 – 8 ton, as well as tractors, agricultural loaders or mini loaders. Small in size, big on power. The TMK 200 delivers top tier shearing at great value. The Scissor-style cutting action delivers a clean cut without uprooting the brush.
SO WHY THE TMK 200?
SO WHY THE TMK 200?
The TMK 200 gives a great deal of power in a small package. for many mini-excavators the TMK 300 is too heavy an attachment. Customers usually want the largest cutting diameter possible for the shear, but if you will rarely need this size the TMK 200 is often a much better and more cost-effective option than its big brother. The TMK 200 uses the same cutting cylinder as the TMK 300, so there is no compromise on cutting power.
The TMK 200 is extremely lightweight, even when combined with the most popular attachments, the delimber and the collector. With attachments, the TMK 200 weighs as much as many competing equivalent tree shears.
Even large trees will stay firmly in the grip of the TMK 200 at the base of the blade, close to the grapple, where the clamping force is greatest. The recommended working pressure is 180–250 bar, depending on the cylinder
Like with the whole range, most of the attachment options can be retro fitted further down the line if required as needs grow. The unique structure ensures durability, The TMK 200’s blade is made of Hardox 500 Steel & 15 mm thick.
Capable of cutting up to 180mm Hard Wood & 200mm Softwood
CYLINDER OPTIONS
The versatile main Cylinder Options on the TMK Tree Shear allow you to adapt the shear to your existing machine, both in terms of cutting power and operating speed. Because of various cylinder options, the shear can be connected to just about any machine.
The same cylinder options are available for the TMK 200, 300 models, with three different offerings as below!
Bigger Cylinder
Our standard Cylinder Option here in the UK, operating on a lower pressure then the “TMK Standard Cylinder”
RECOMMENDED PRESSURE : 220 – 250BAR
RECOMMENDED FLOW : 100 – 150lpm
HD Cylinder
The HD ( Heavy Duty ) Cylinder is a powerhouse for small machines in particular. When a big tree needs to be cut with limited pressure, the HD cylinder is just what you need, working on a lower pressure when compaired with the other available Cylinder Options
RECOMMENDED PRESSURE : 180 – 220BAR
RECOMMENDED FLOW : 100 – 150lpm
Turbo Cylinder
TMK Turbo is a patented cylinder consisting of a smaller cylinder inside a bigger one. The smaller cylinder is always activated first, and the bigger one only if there is not enough power. This arrangement harnesses the speed of the small cylinder and the power of the large cylinder.
RECOMMENDED PRESSURE : 220 – 250BAR
RECOMMENDED FLOW : 50 – 150lpm
Part of the Fixed, Rotating & Hanging series of products
The TMK 200 Tree Shear can be fitted with a full 360 degree rotator, along with the hanging tilt offering more suited to tractor cranes & or harvesters.
POPULAR OPTIONAL ATTACHMENTS
Here are a few of the most popular optional
attachments

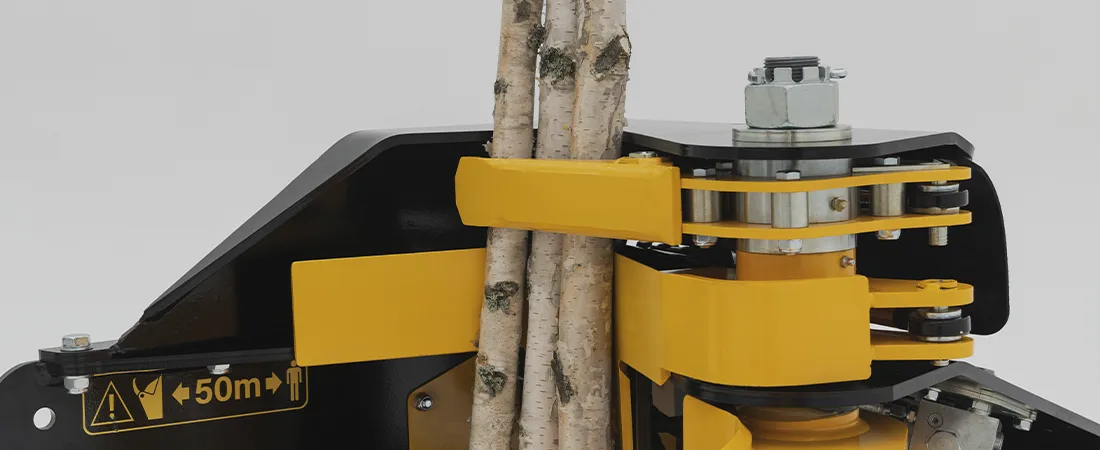

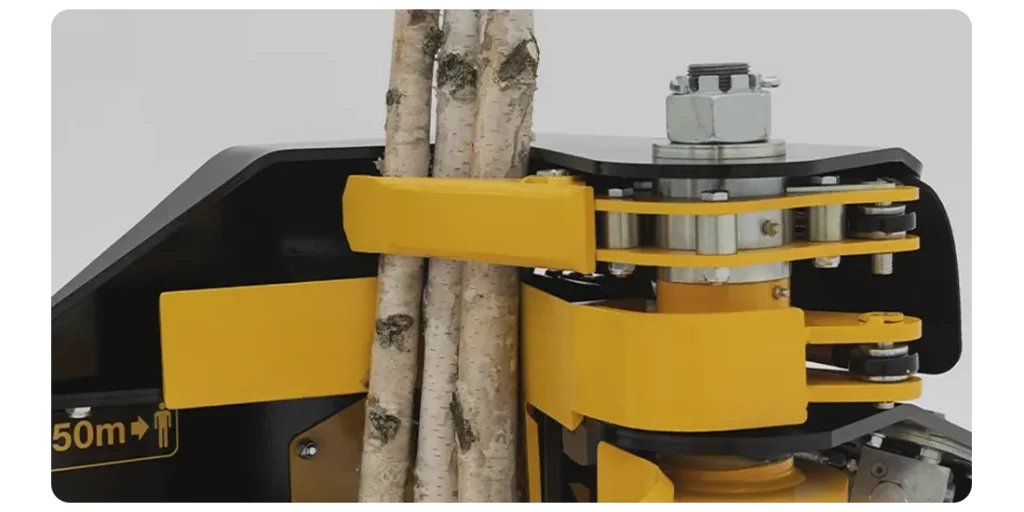

The Collector / Accumilator
The simple operation of the Collector enables quick and easy operation, for example when thinning a young forest. With the Collector, you can cut and collect thin trunks without having to lift the boom after each cut, turn the machine and drop a small trunk into a pile individually. Now with two different control options “Easy Control” & “Full Control“

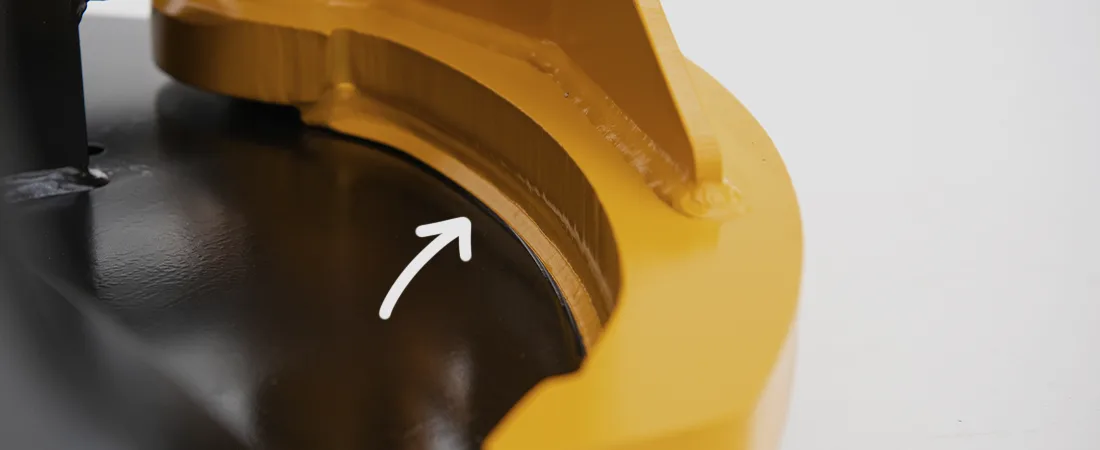

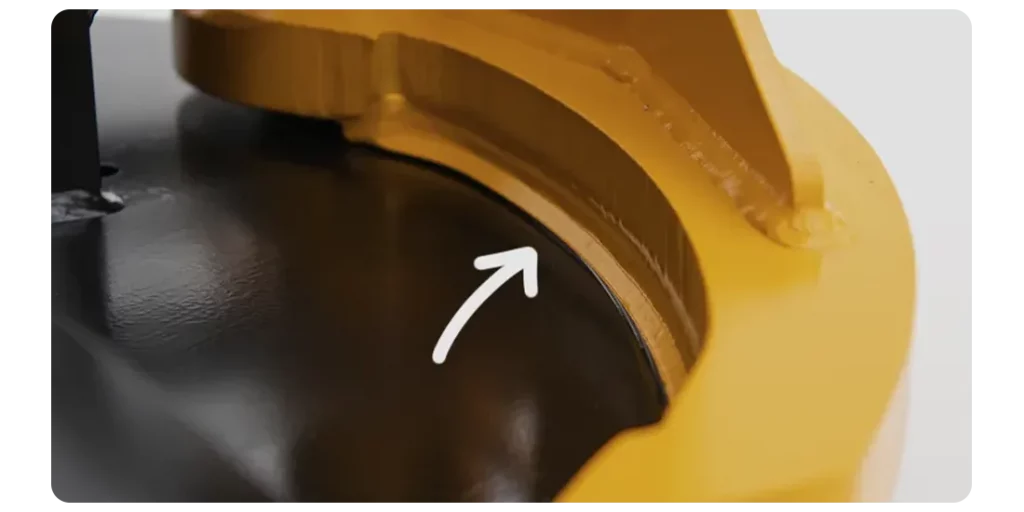

The Brush Grapple
Allowing you to cut even the smallest trees neatly. An additional blade welded at the bottom of the grapple is sharpened on one side only, and it eliminates the gap between the grapple and the blade. As a result, the cutting motion becomes more scissor-like and even the most flexible twigs, such as small willows.
Thanks to its extensive range of attachments & easy adaptability, the TMK Tree Shear is one of the most versatile tree shears on the market. Offering the ability to grow with your work. Globally, TMK ’s range of attachments is by far the most comprehensive compared to other tree shears. -To see the full attachment range click “HERE” ( COMING SOON )
Want to see how the TMK 200 Tree Shear could benefit your operation, or need help choosing the ideal setup for your machine and workload? Get in touch with us today—we’re here to help you find the right solution.
