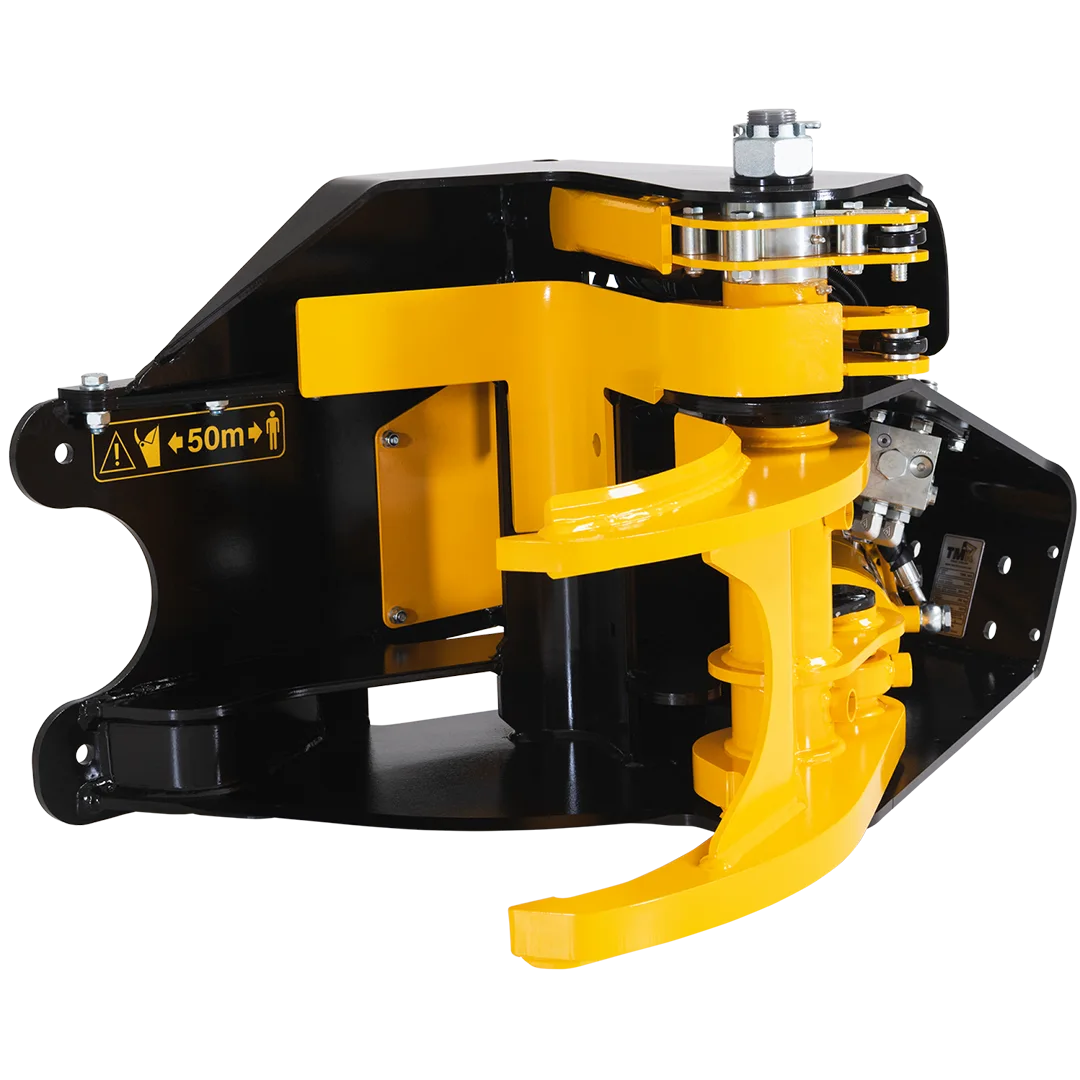

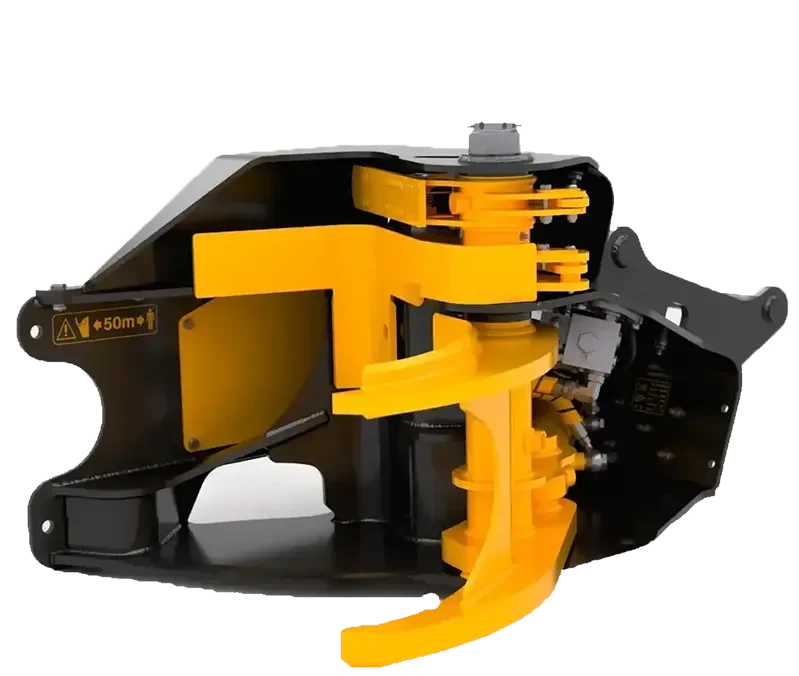

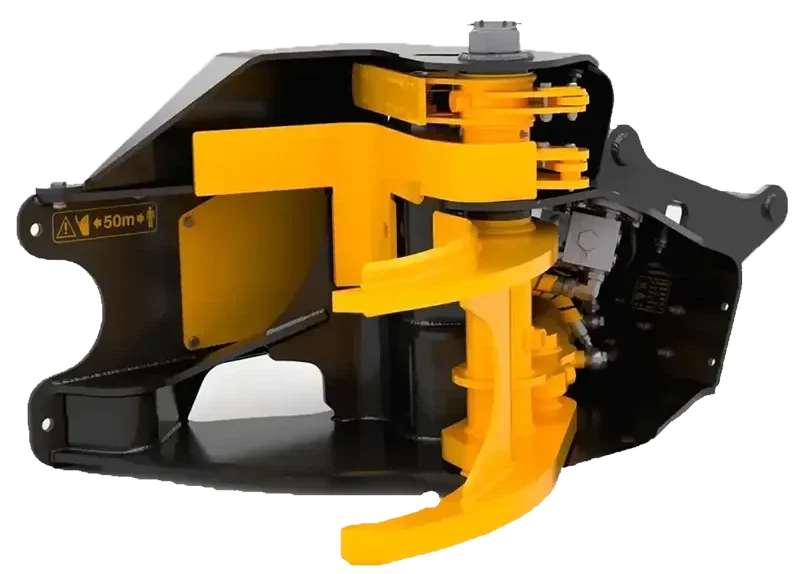

TMK 300 Tree Shear
MACHINE SIZE
5.5 - 20 Ton
MAXIMUM DIAMETER CUT
300 mm
WEIGHT
310 KG

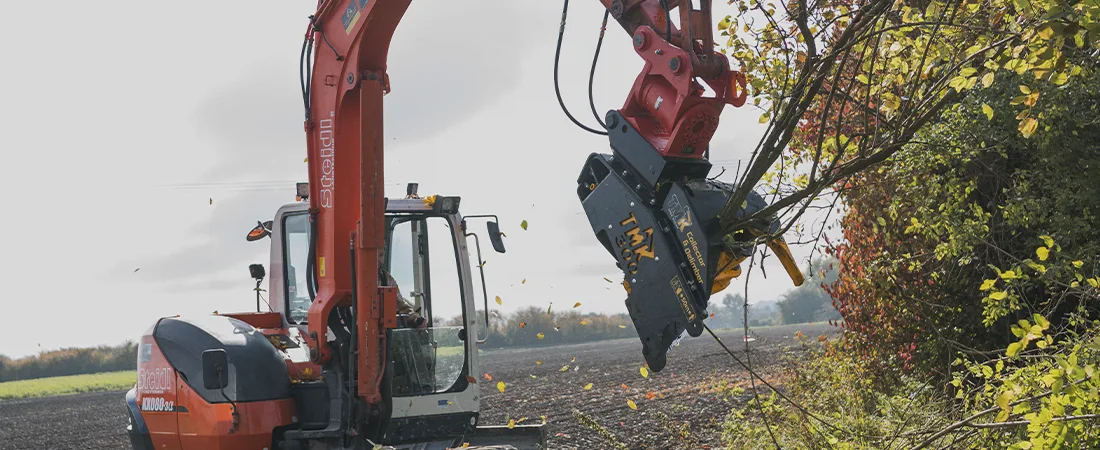

Looking for a powerful tree shear for your excavator? The TMK 300 is the Genuine and Original guillotine shear for an excavator or a skid-steer loader, amongst other applications. Ideal both for those who do occasional forestry work and value simplicity, and for professionals who value efficiency.
SO WHY THE TMK 300?
The Original
SO WHY THE TMK 300?
The Original
The efficient optional attachments make sure that the TMK 300 compliments specifically your needs perfectly. And when the needs grow with your work, the shear can grow with you by adding features later on if needs be.

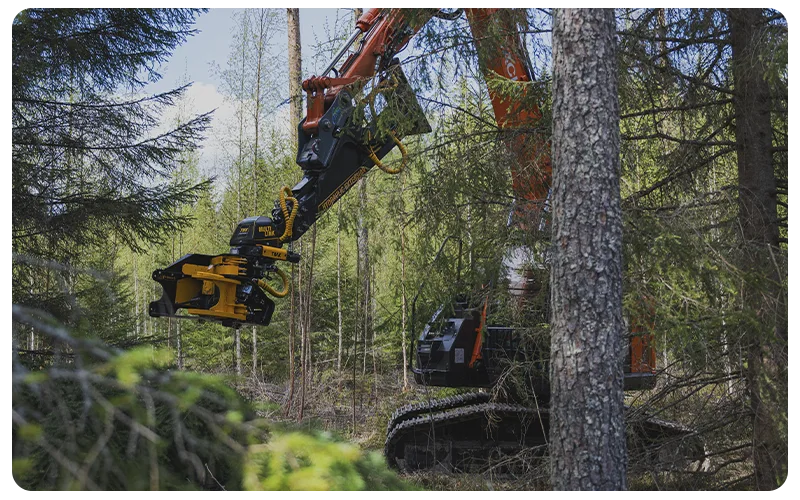

The blade is high quality Hardox 500 steel and with fixed design it will last being 15 mm thick with the Next-GEN model. This way the blade slices better into the tree and can still withstand heavy work. The shear frame is made out of Hardox 400 steel, so also there we get a peace of mind with Hardox. TMK 300 is probably the most popular tree shear in the world. This model has been manufactured for more than 4000 units and there are reasons for the high demand. Find out more below!
What Are The TMK 300’s Capacities?
Up to 300 mm softwood and 250 mm hardwood trees can be cut comfortably. Combined with the Collector the small brush can also be cut and collected efficiently. The BrushGrapple attachment allows for a clean cut even on the smallest of twigs!
What Makes The 300 Demand So High?
The TMK 300 fits widely to the most common sized machines and the optional attachment portfolio is extremely comprehensive, this shear fits 5.5-20 tonne machines. The structure is in true TMK fashion modular.
CYLINDER OPTIONS
The versatile main Cylinder Options on the TMK Tree Shear allow you to adapt the shear to your existing machine, both in terms of cutting power and operating speed. Because of various cylinder options, the shear can be connected to just about any machine.
The same cylinder options are available for both the TMK 200/300 models with three different Cylinder options.
Bigger Cylinder
Our standard Cylinder Option here in the UK, operating on a lower pressure then the “TMK Standard Cylinder”
RECOMMENDED PRESSURE : 220 – 250BAR
RECOMMENDED FLOW : 100 – 150lpm
HD Cylinder
The HD ( Heavy Duty ) Cylinder is a powerhouse for small machines in particular. When a big tree needs to be cut with limited pressure, the HD cylinder is just what you need, working on a lower pressure when compared with the other available Cylinder Options
RECOMMENDED PRESSURE : 180 – 220BAR
RECOMMENDED FLOW : 100 – 150lpm
Turbo Cylinder
TMK Turbo is a patented cylinder consisting of a smaller cylinder inside a bigger one. The smaller cylinder is always activated first, and the bigger one only if there is not enough power. This arrangement harnesses the speed of the small cylinder and the power of the large cylinder.
RECOMMENDED PRESSURE : 220 – 250BAR
RECOMMENDED FLOW : 50 – 150lpm
Part of the Fixed & Rotating series of products
The TMK 300 Tree Shear can be fitted with either the TMK 180º Tilting Unit ( 90 in either direction ) or a full 360 degree rotator is now available to suit the 300 model.
POPULAR OPTIONAL ATTACHMENTS
Here are a few of the most popular optional
attachments

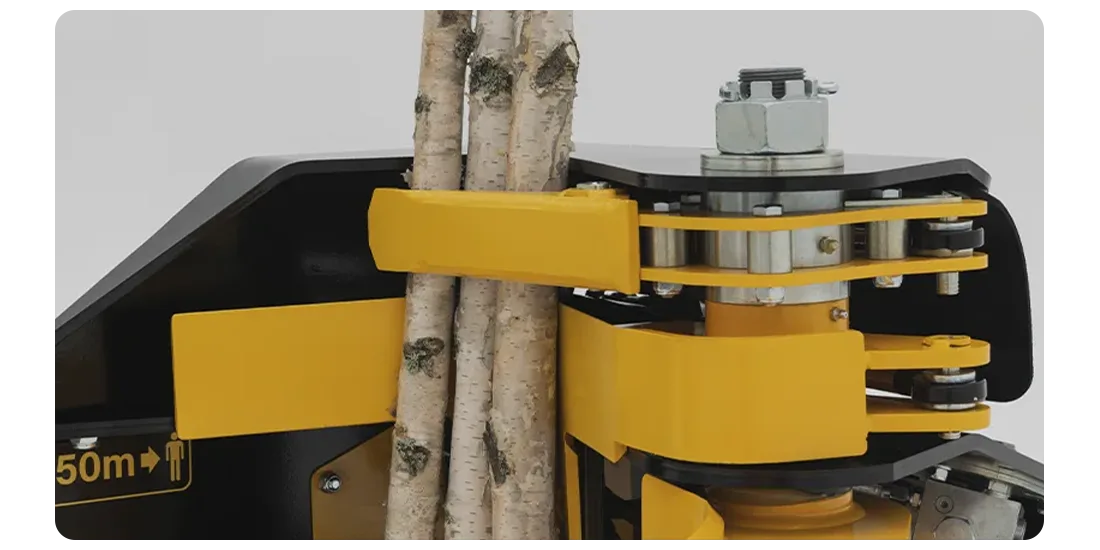

The Collector / Accumilator
The simple operation of the Collector enables quick and easy operation, for example when thinning a young forest. With the Collector, you can cut and collect thin trunks without having to lift the boom after each cut, turn the machine and drop a small trunk into a pile individually. Now with two different control options “Easy Control” & “Full Control“

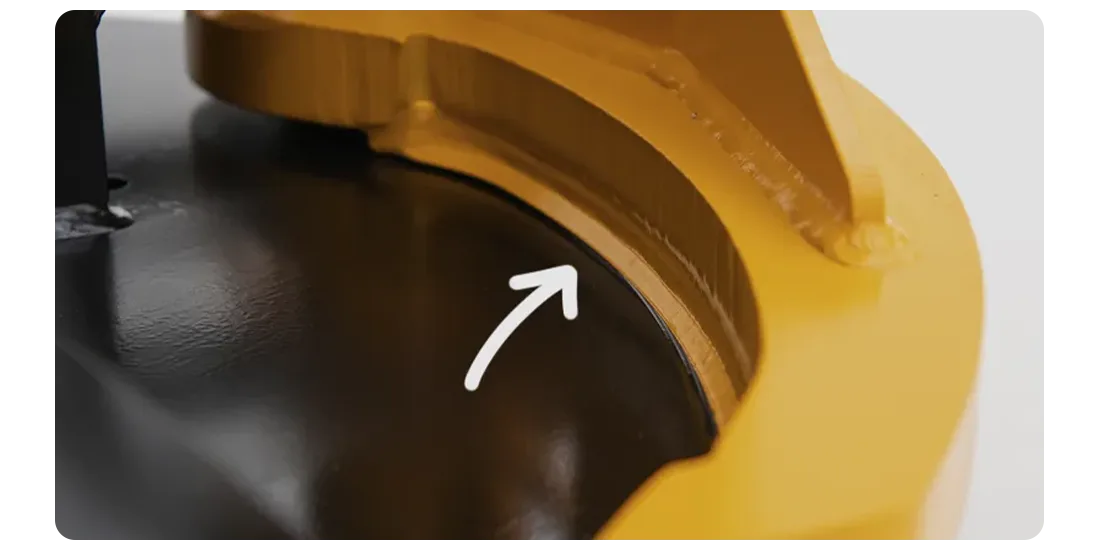

The Brush Grapple
Allowing you to cut even the smallest trees neatly. An additional blade welded at the bottom of the grapple is sharpened on one side only, and it eliminates the gap between the grapple and the blade. As a result, the cutting motion becomes more scissor-like and even the most flexible twigs, such as small willows.
Thanks to its extensive range of attachments & easy adaptability, the TMK Tree Shear is one of the most versatile tree shears on the market. Offering the ability to grow with your work. Globally, TMK ’s range of attachments is by far the most comprehensive compared to other tree shears. -To see the full attachment range click “HERE” ( COMING SOON )
Want to see how the TMK 300 Tree Shear could benefit your operation, or need help choosing the ideal setup for your machine and workload? Get in touch with us today—we’re here to help you find the right solution.
