TMK Grapple Saw
MACHINE SIZE
13 - 25 Ton
MAXIMUM DIAMETER CUT
650 mm
WEIGHT
850 KG / 990 KG With Rotator
SHEAR BLADE
Built In Hydraulic Tree Shear

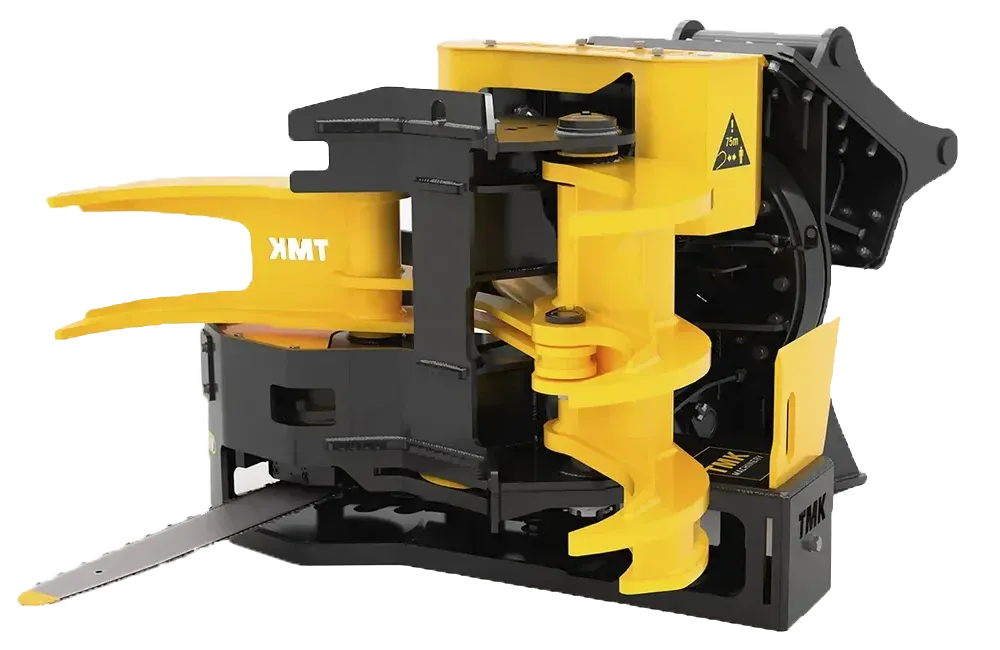

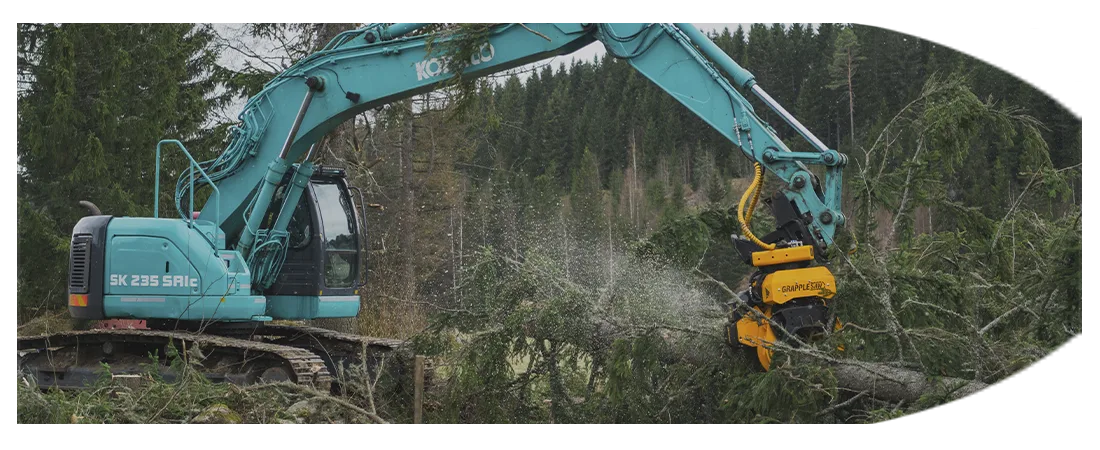

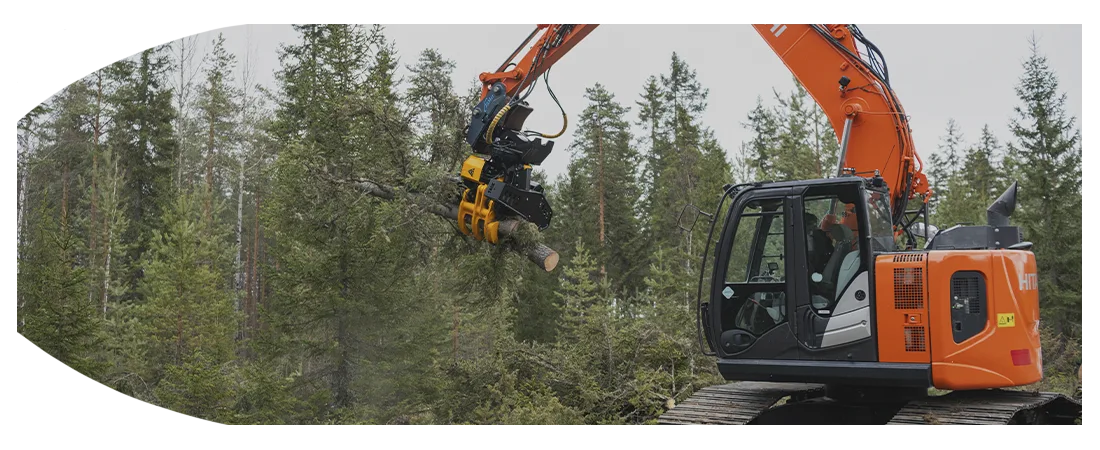

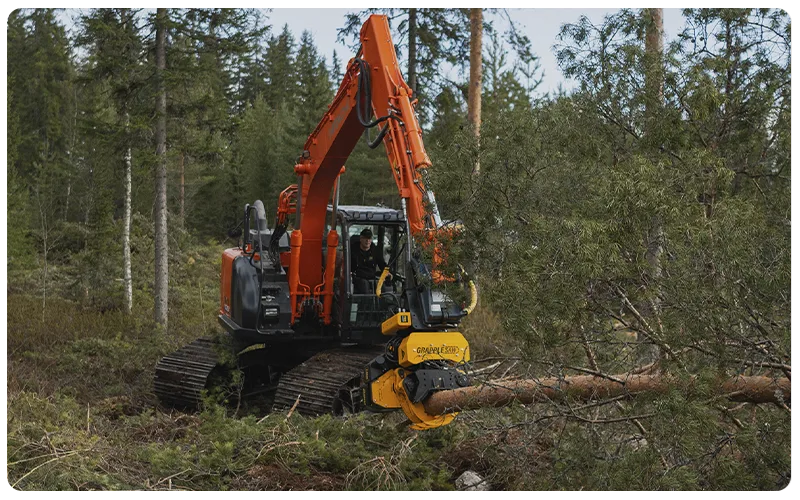

The TMK Grapple Saw is a high performance saw unit, built for professional forestry contracting. Weighing just 850KG / 950KG with rotator its suitable for excavators in the 13 – 25 Ton range. Optional features include a rotator unit, Guillotine & splitting blade.

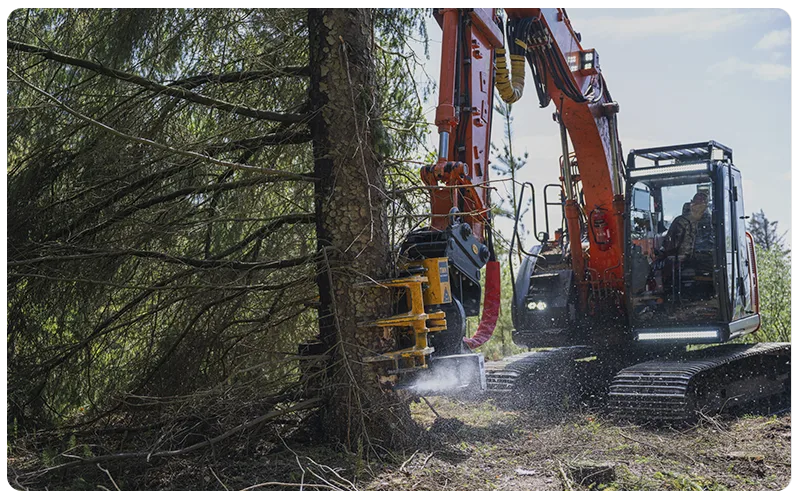

Capable of cutting up to 65cm ( 650mm ) diameter trees. The TMK Grapple Saw doesn’t cut corners – Just trees. Big ones. Compact, Powerful, Built to perform.
AN INSIGHT INTO THE TMK GRAPPLE-SAW :

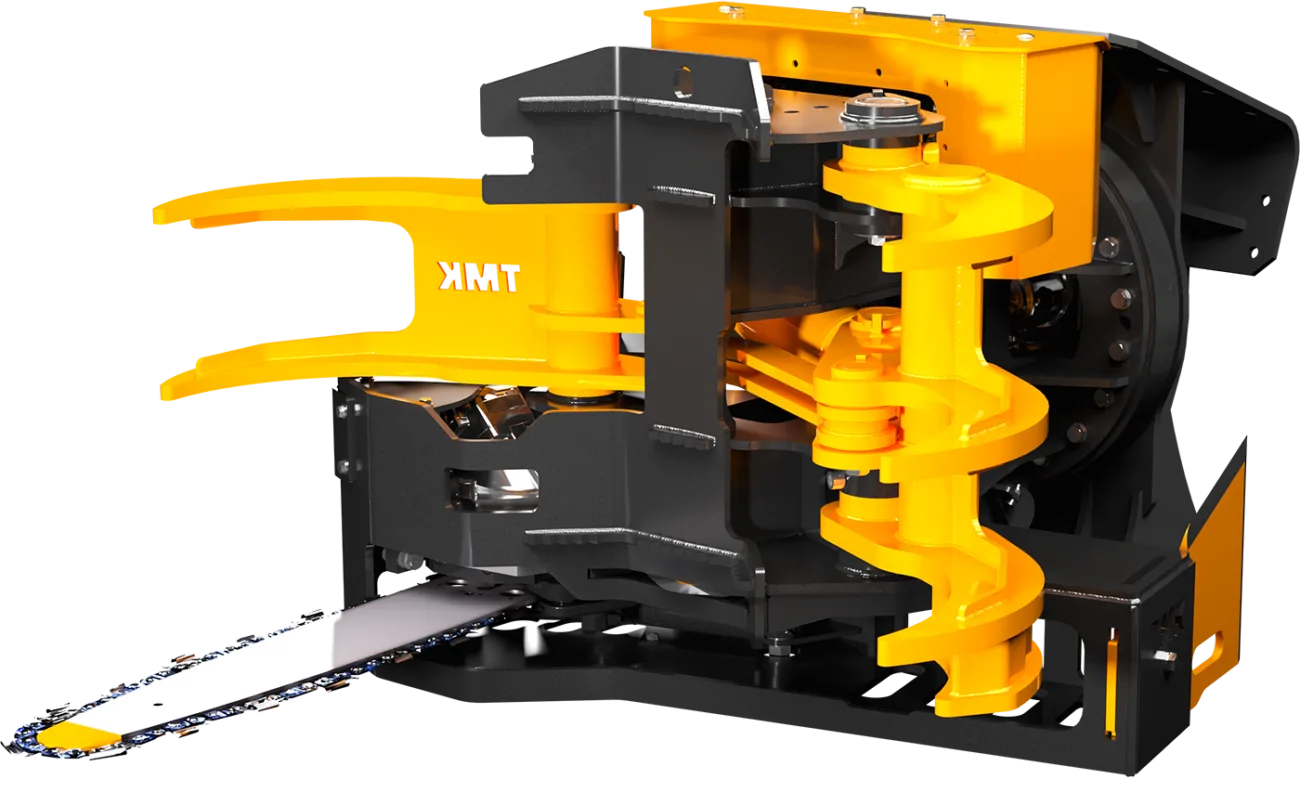

The TMK Grapple Saw is TMK’s next venture beyond the Tree Shear attachments. The TMK Grapple Saw is a powerhouse forestry attachment capable of cutting up to 650 mm trees in diameter. Powered by a 75 or 80cm long saw bar, available with either .404” or 3/4” chain.

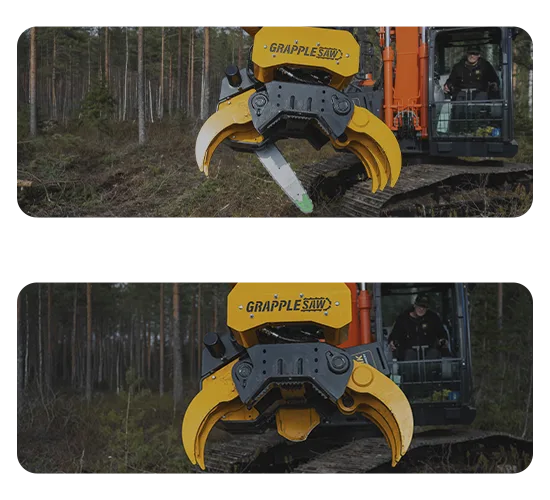

Available with a guillotine blade, which is driven hydraulically in and out of the frame acting similar to a Tree Shear. This blade quickly transforms the Grapple Saw to work as a regular Tree Shear with double grapples and can be used to cut smaller branches and trees without a hassle.
High quality Hardox with the durable structure helps the TMK Grapple Saw persist in the toughest situations. Hardox bends under stress, which gives it a much longer lasting product life. Keeping in line with TMK’s Simply efficient way of manufacturing, the Grapple Saw is remarkably easy to install & maintain. Just one adjustment valve is needed to choose the cutting speed of the saw guide bar.
Go Wireless
Operate with ease thanks to TMK’s wireless system
Plug & Play Ready
No extra hydraulic pumps needed other then a Drain Line, just minor adjustments and your good to go!
Smart Shearing
With an integrated hydraulic shear blade to handle the smaller scrappier branches.
Precision Locking
Lock the grapple in any position whilst still being able to operate the saw bar, for safer more controlled cuts.
Split, Split, Split
Featuring a log splitting blade attachment for quick processing
ATTACHMENTS
Included as standard with the TMK GrappleSaw
Hydraulically Controlled Guillotine Blade for Branches / Smaller Material
Available with a guillotine blade, which is driven hydraulically in and out of the frame. This blade quickly transforms the TMK Grapple Saw to work as a regular Tree Shear with double grapples and can be used to cut smaller branches and trees without a hassle.
Splitting Blade For Firewood
Available with the splitting blade attachment! After cutting up to 65 cm trees, the logs are easily halved into firewood with a detachable splitting blade. The blade is held by just one bolt.

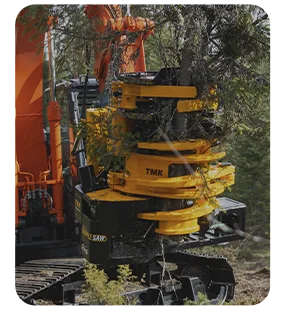

TMK Collector – Not standard optional attachment
Allows you to collect multiple smaller cuts before having to drop off, when working with smaller material for example with the Shear Attachment this can help to speed up the process meaning less dropping off / time between cuts.
Want to see how the TMK Grapple SAW could benefit your operation, or need help choosing the ideal setup for your machine and workload? Get in touch with us today—we’re here to help you find the right solution.
